Product Description

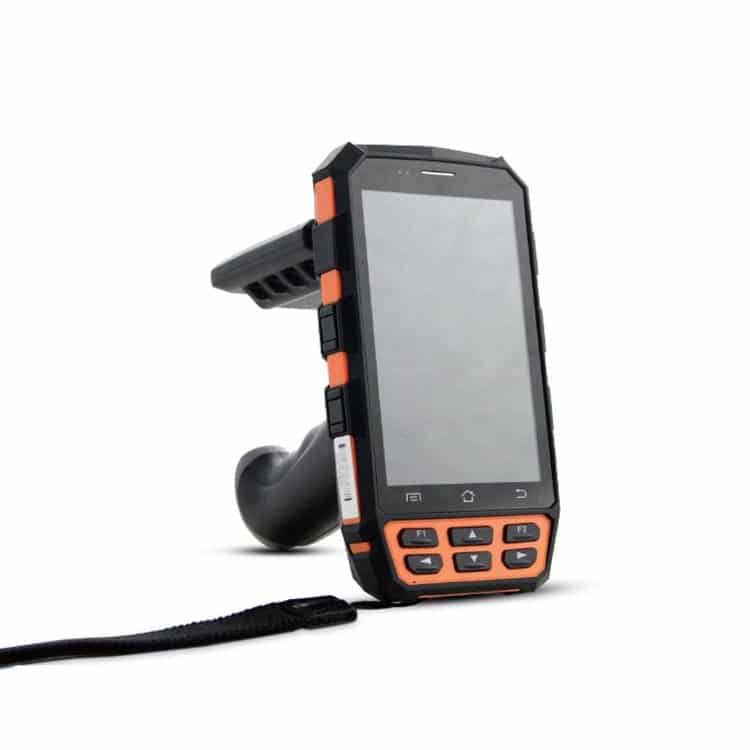

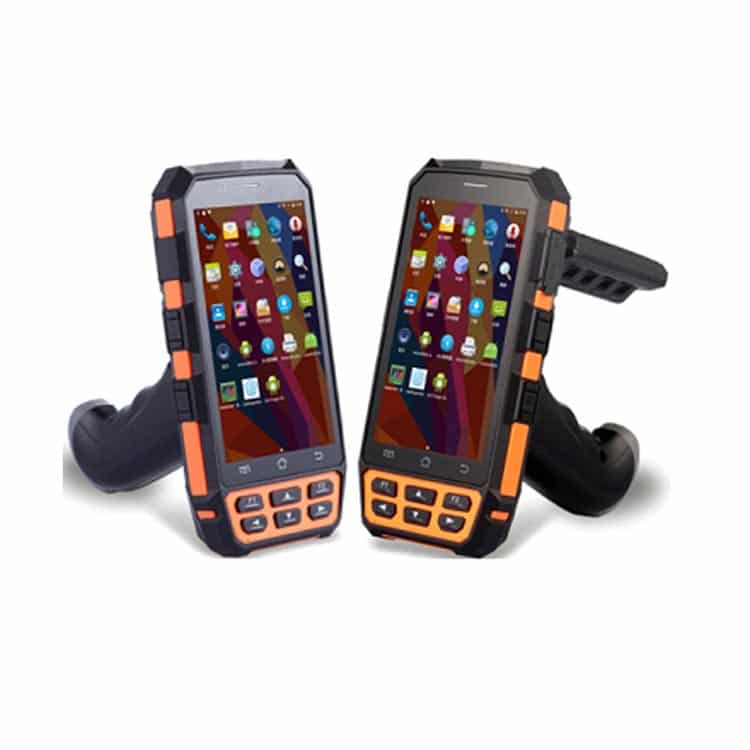

Supports Android operating system and can read and write in low, high and ultra-high RFID frequencies. Ergonomic design with external antenna ensures easy handling in various surroundings.
Mainly used in logistics, asset management, warehouse management, library management, production management, ticket management and other fields.
Specifications
| Basic Parameters | |
| Size | 170mm×85mm×23mm/ 6.69×3.35×0.91in |
| Weight | About 400g |
| Display | 5-inch IPS HD screen, resolution 720 × 1280 |
| Touch Screen | Industrial multi-touch capacitive screen |
| Expansion slot | 1 SIM, 2 PSAM |
| 1 MicroSD(TF) | |
| Communication Interface | USB2.0 interface, 3.5 plug charging interface |
| Audio | Voice broadcast |
| Indicator light | Network indicator, charging indicator |
| Key | Scan key, function key |
| Camera (Optional) | 8-megapixel rear camera with flash and autofocus function |
| Flashlight | Low power LED lighting, used in emergency |
| GPS | Built-in GPS global positioning system, range error ± 5m |
| Performance Parameters | |
| CPU | Quad-core 64-bit Cortex-A53 |
| Memory | RAM: 2GB, ROM:16GB |
| System | Android 5.1.1 |
| Extended memory | Supports up to 32G MicroSD card |
| Data Communication | |
| 4G | TDD-LTE Band 38/39/40 |
| FDD-LTE Band 1, 2, 3, 4, 7 | |
| 3G | WCDMA(850/1900/2100MHz) |
| WIFI | 2.4G/5G. comply with IEEE 802.11a/b/g/n |
| Bluetooth | Bluetooth4.0 |
| Working Environment | |
| Operating temp. | -20 to 50℃ / -4℉ to 122℉ |
| Storage temp. | -20 to 70℃/ -4℉ to 158℉ |
| Degree of Protection | IP65 |
| Battery Performance | |
| Battery capacity | Li-polm, 8000mAh |
| Stand-by time | 360 hours when turn off the wireless communication and other functions |
| Operating hours | 10 hours or more (full charge) |
| Charging time | ＜4.5hours |
| Barcode Scanning (Optional) | |
| 1D Barcode | Code 39, Code 93, Code128, Codebar, EAN-13, EAN- 8, UPC- A, UPC- E, ITF14, UCC/EAN- 128, ITF25, Matrix 25, EAN- 128, ISBNetc |
| 2D Barcode | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc |
| RFID (Optional) | |
| UHF | ETSI：865～868MHz OR FCC: 902～928MHz |
| Working protocol: ISO18000-6C | |
| Reading Distance: 0-7m (Ranges depend on tags and environment) | |
| Anti-collision (optional): 200 pcs/s | |
| Output power: 0-30 dBm/2W | |
| HF | Working frequency: 13.56MHz |
| Working protocol: ISO14443A&ISO15693 | |
| Reading distance: 0～7cm(Ranges depend on tags and environment) | |
| LF | 125kHz/134.2kHz |
| PSAM | 2PSAM |
| HF (CPU CARD) | Read&Write, work only with PSAM |
| Active 2.45G (Custom) | Reading distance: 200m, 200pcs/time reading |
| Other Optional Modules | |
| 433MHz (Custom) | Reading distance＞200m, reading distance could be customized |
| ZIGBEE (Custom) | Applicable wireless network data acquisition |
| Infrared (Custom) | |
| Biological Identification (Optional) | |
| Module function | Enrollment, compare and deletion etc |
| Sensor | TCS1Biological fingerprints /FBI certificated |
| Sensor Type | Inductive capacitance |
| Image Size | 256×360 pixel |
| Resolution | 500DPI |
| Storage Memory | 1000 fingerprints |
| Accessory | |
| Standard | Li-polm battery, charging head, DC cable, USB cable |
| Optional | Recharging cradle |
| Support | |
| Documents | Demo, API, software development guidance |
